Hi-Lead® Bronze & Plastic Threaded Mount Style Nuts

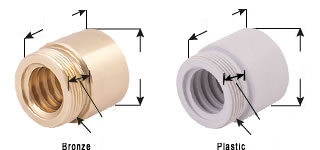

Bronze & Plastic Threaded Mount Style Nuts

Table 14

BThread Size (dia. x Lead)	CHand	DMaterial	EOutside Diameter (in.)	FOverall Length (in.)	GMount Thread Length (in.)	HMount Thread Size (Unified)	IMating Flange Part Number	JPart Number	$Prices & Products
1/4 X .100	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	91858	Mates
1/4 X .100	LH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	91859	Mates
1/4 X .100	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91860	Mates
1/4 X .100	LH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91861	Mates
1/4 X .250	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	91184	Mates
1/4 X .250	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91186	Mates
3/8 X .167	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	90496	Mates
3/8 X .167	LH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	90497	Mates
3/8 X .167	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91050	Mates
3/8 X .167	LH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91051	Mates
3/8 X .200	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	90498	Mates
3/8 X .200	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91056	Mates
3/8 X .250	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	91304	Mates
3/8 X .250	LH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	91305	Mates
3/8 X .250	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91306	Mates
3/8 X .250	LH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	91307	Mates
3/8 X .375	RH	Bronze	0.680	0.625	0.375	.563 - 18 UNF	89837	92028	Mates
3/8 X .375	RH	Plastic	0.680	0.625	0.375	.563 - 18 UNF	89837	92030	Mates
1/2 X .200	RH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	90500	Mates
1/2 X .200	LH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	90501	Mates
1/2 X .200	RH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91054	Mates
1/2 X .200	LH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91055	Mates
1/2 X .250	RH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	90502	Mates
1/2 X .250	LH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	90503	Mates
1/2 X .250	RH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91052	Mates
1/2 X .250	LH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91053	Mates
1/2 X .333	RH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	91272	Mates
1/2 X .333	RH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91274	Mates
1/2 X .500	RH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	91328	Mates
1/2 X .500	LH	Bronze	1.125	0.750	0.500	.938 - 16 UN	89838	91329	Mates
1/2 X .500	RH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91330	Mates
1/2 X .500	LH	Plastic	1.125	0.750	0.500	.938 - 16 UN	89838	91331	Mates
5/8 X .200	RH	Bronze	1.125	1.000	0.500	.938 - 16 UN	89838	90504	Mates
5/8 X .200	LH	Bronze	1.125	1.000	0.500	.938 - 16 UN	89838	90505	Mates
5/8 X .200	RH	Plastic	1.125	1.000	0.500	.938 - 16 UN	89838	91062	Mates
5/8 X .200	LH	Plastic	1.125	1.000	0.500	.938 - 16 UN	89838	91063	Mates
5/8 X .250	RH	Bronze	1.125	1.000	0.500	.938 - 16 UN	89838	90506	Mates
5/8 X .250	LH	Bronze	1.125	1.000	0.500	.938 - 16 UN	89838	90507	Mates
5/8 X .250	RH	Plastic	1.125	1.000	0.500	.938 - 16 UN	89838	91060	Mates
5/8 X .250	LH	Plastic	1.125	1.000	0.500	.938 - 16 UN	89838	91061	Mates
11/16 X .500	RH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	90508	Mates
11/16 X .500	RH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91058	Mates
3/4 X .250	RH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	90510	Mates
3/4 X .250	LH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	90511	Mates
3/4 X .250	RH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91066	Mates
3/4 X .250	LH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91067	Mates
3/4 X .333	RH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	90512	Mates
3/4 X .333	LH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	90513	Mates
3/4 X .333	RH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91064	Mates
3/4 X .333	LH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91065	Mates
3/4 X .500	RH	Bronze	1.125	1.250	0.500	1.000 - 18 UNS	90203	91626	Mates
3/4 X .500	RH	Plastic	1.125	1.250	0.500	1.000 - 18 UNS	90203	91628	Mates
1 X .250	RH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	92346	Mates
1 X .250	LH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	92347	Mates
1 X .250	RH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	92348	Mates
1 X .250	LH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	92349	Mates
1 X .333	RH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90514	Mates
1 X .333	LH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90515	Mates
1 X .333	RH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91030	Mates
1 X .333	LH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91031	Mates
1 X .400	RH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90516	Mates
1 X .400	LH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90517	Mates
1 X .400	RH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91034	Mates
1 X .400	LH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91035	Mates
1 X .500	RH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90086	Mates
1 X .500	LH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90519	Mates
1 X .500	RH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91036	Mates
1 X .500	LH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91037	Mates
1 X 1.000	RH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90520	Mates
1 X 1.000	LH	Bronze	1.500	1.500	0.500	1.375 - 16 UN	90083	90521	Mates
1 X 1.000	RH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91032	Mates
1 X 1.000	LH	Plastic	1.500	1.500	0.500	1.375 - 16 UN	90083	91033	Mates
1 1/8 X .333	RH	Bronze	2.125	1.500	0.500	1.967 - 18 UNS	89842	90522	Mates
1 1/8 X .333	RH	Plastic	2.125	1.500	0.500	1.967 - 18 UNS	89842	91044	Mates
1 1/4 X .400	RH	Bronze	2.125	1.750	0.813	1.967 - 18 UNS	90185	90524	Mates
1 1/4 X .400	LH	Bronze	2.125	1.750	0.813	1.967 - 18 UNS	90185	90525	Mates
1 1/4 X .400	RH	Plastic	2.125	1.750	0.813	1.967 - 18 UNS	90185	91118	Mates
1 1/4 X .400	LH	Plastic	2.125	1.750	0.813	1.967 - 18 UNS	90185	91119	Mates
1 1/2 X .400	RH	Bronze	2.125	2.300	0.813	1.967 - 18 UNS	90185	90526	Mates
1 1/2 X .400	LH	Bronze	2.125	2.300	0.813	1.967 - 18 UNS	90185	90527	Mates
1 1/2 X .400	RH	Plastic	2.125	2.300	0.813	1.967 - 18 UNS	90185	91120	Mates
1 1/2 X .400	LH	Plastic	2.125	2.300	0.813	1.967 - 18 UNS	90185	91121	Mates
1 1/2 X .500	RH	Bronze	2.125	2.300	0.813	1.967 - 18 UNS	90185	90528	Mates
1 1/2 X .500	RH	Plastic	2.125	2.300	0.813	1.967 - 18 UNS	90185	91117	Mates
1 1/2 X .750	RH	Bronze	2.125	2.300	0.813	1.967 - 18 UNS	90185	90530	Mates
1 1/2 X .750	RH	Plastic	2.125	2.300	0.813	1.967 - 18 UNS	90185	91116	Mates
2 X .500	RH	Bronze	2.750	3.125	0.875	2.548 - 18 UNS	89843	90089	Mates
2 X .500	RH	Plastic	2.750	3.125	0.875	2.548 - 18 UNS	89843	91114	Mates
2 X .500	LH	Bronze	2.750	3.125	0.875	2.548 - 18 UNS	89843	91201	Mates
2 X .500	LH	Plastic	2.750	3.125	0.875	2.548 - 18 UNS	89843	91203	Mates
2 X .666	RH	Bronze	2.750	3.125	0.875	2.548 - 18 UNS	89843	90532	Mates
2 X .666	RH	Plastic	2.750	3.125	0.875	2.548 - 18 UNS	89843	91115	Mates
2 X 1.000	RH	Bronze	2.750	3.125	0.875	2.548 - 18 UNS	89843	91314	Mates
2 X 1.000	LH	Bronze	2.750	3.125	0.875	2.548 - 18 UNS	89843	91315	Mates
2 X 1.000	RH	Plastic	2.750	3.125	0.875	2.548 - 18 UNS	89843	91316	Mates
2 X 1.000	LH	Plastic	2.750	3.125	0.875	2.548 - 18 UNS	89843	91317	Mates

Hi-Lead® Bronze & Plastic Threaded Mount Style Nuts - Part Numbers & Dimensions

Table 14

Hi-Lead^® Bronze & Plastic Threaded Mount Style Nuts - Part Numbers & Dimensions
